Description

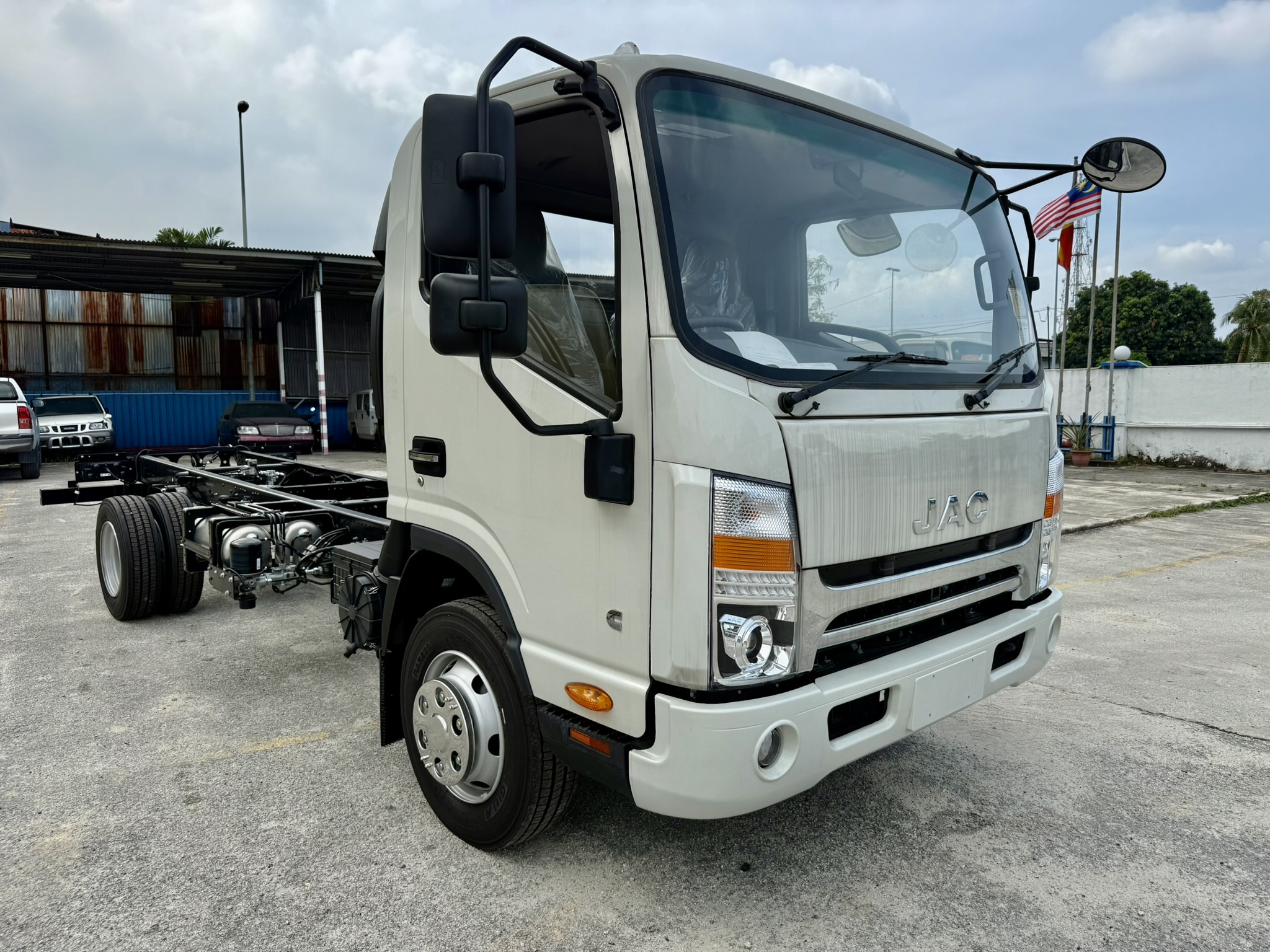

MODEL NAME

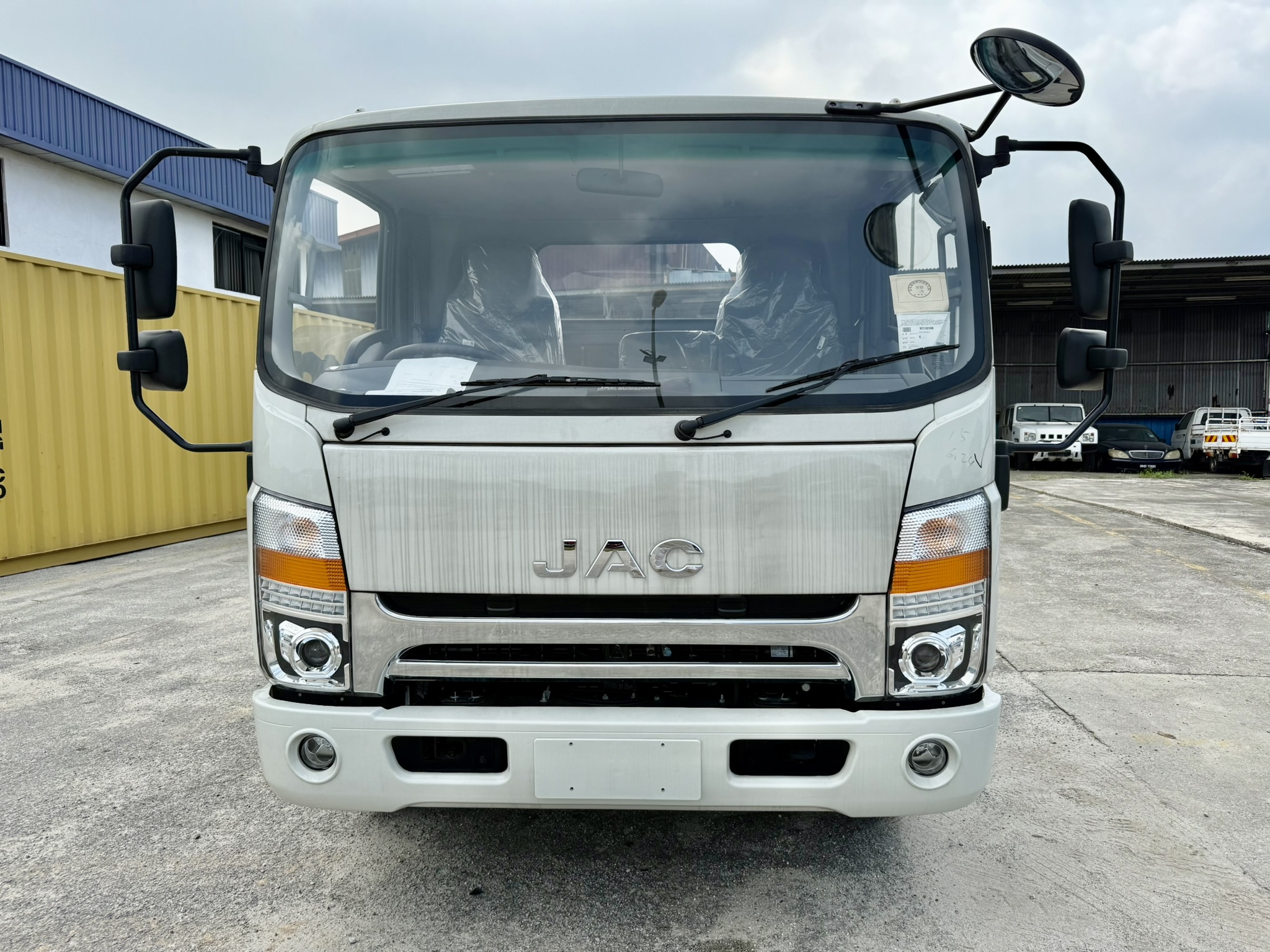

•JAC N80
PERFORMANCE
•Gross Vehicles Weight (Kg): 7500
•Curb Weight (Kg): 2950 / 2990

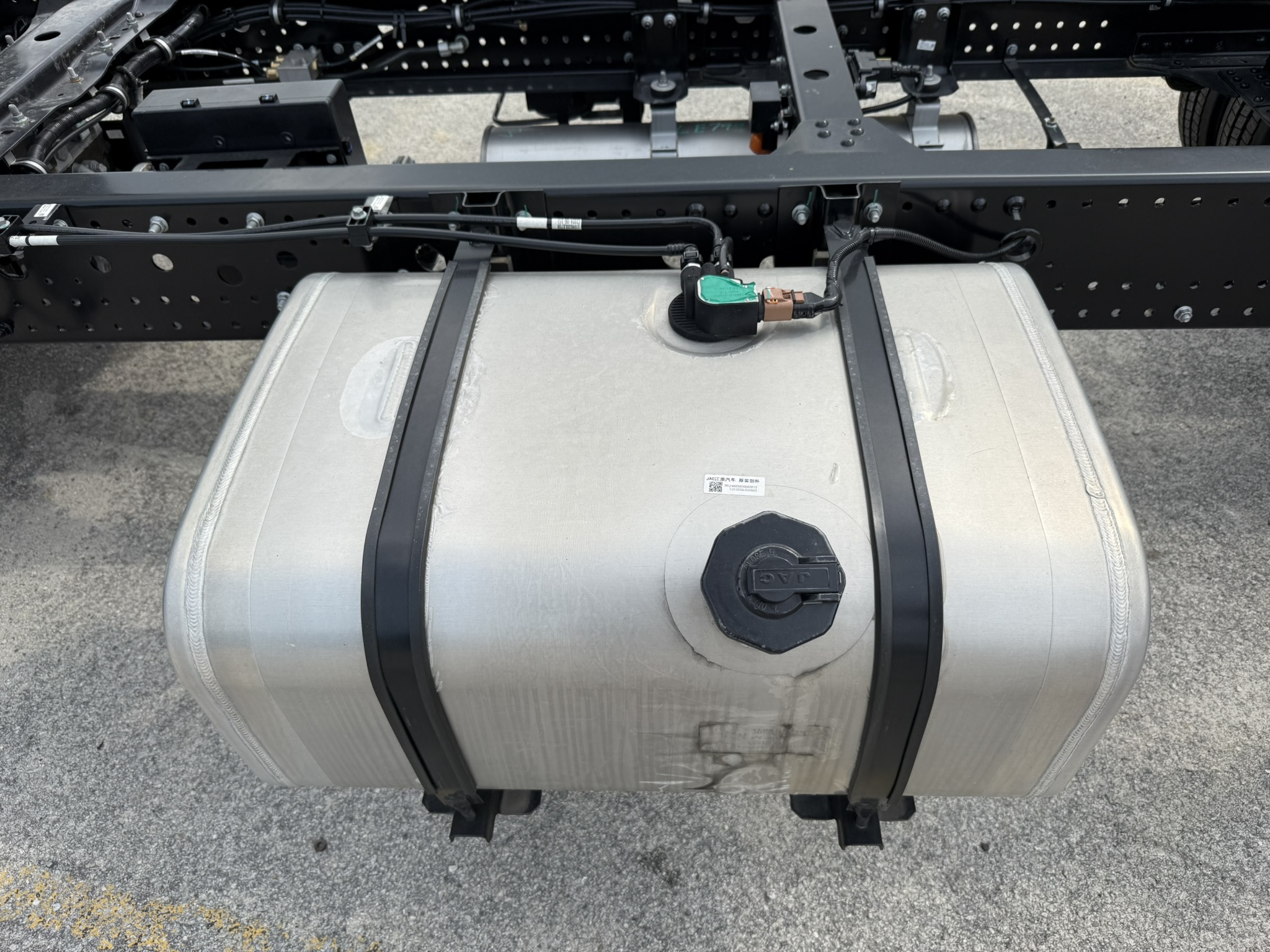

•Fuel tank capacity: 130L
•Max speed (Km/h): 100

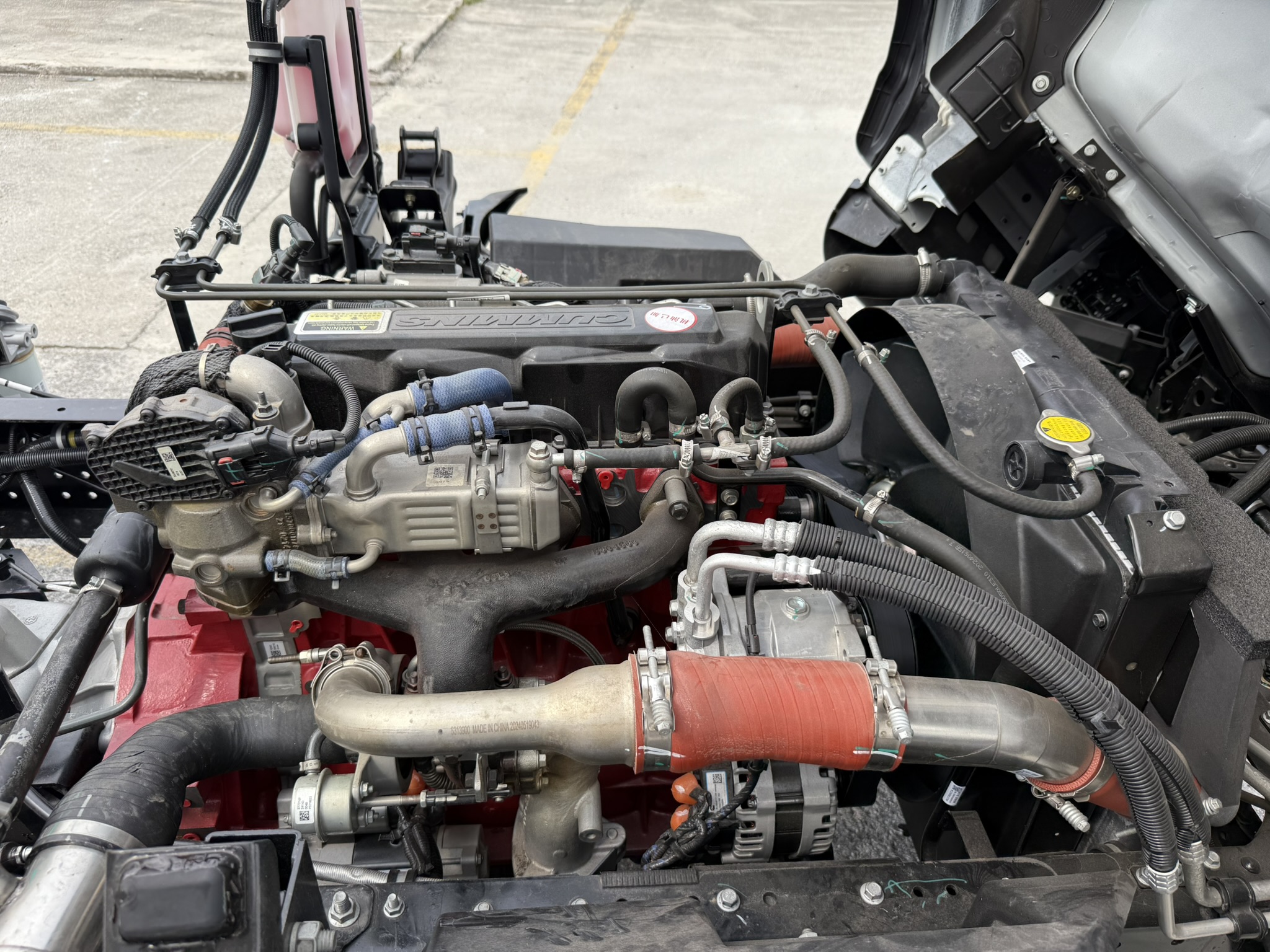

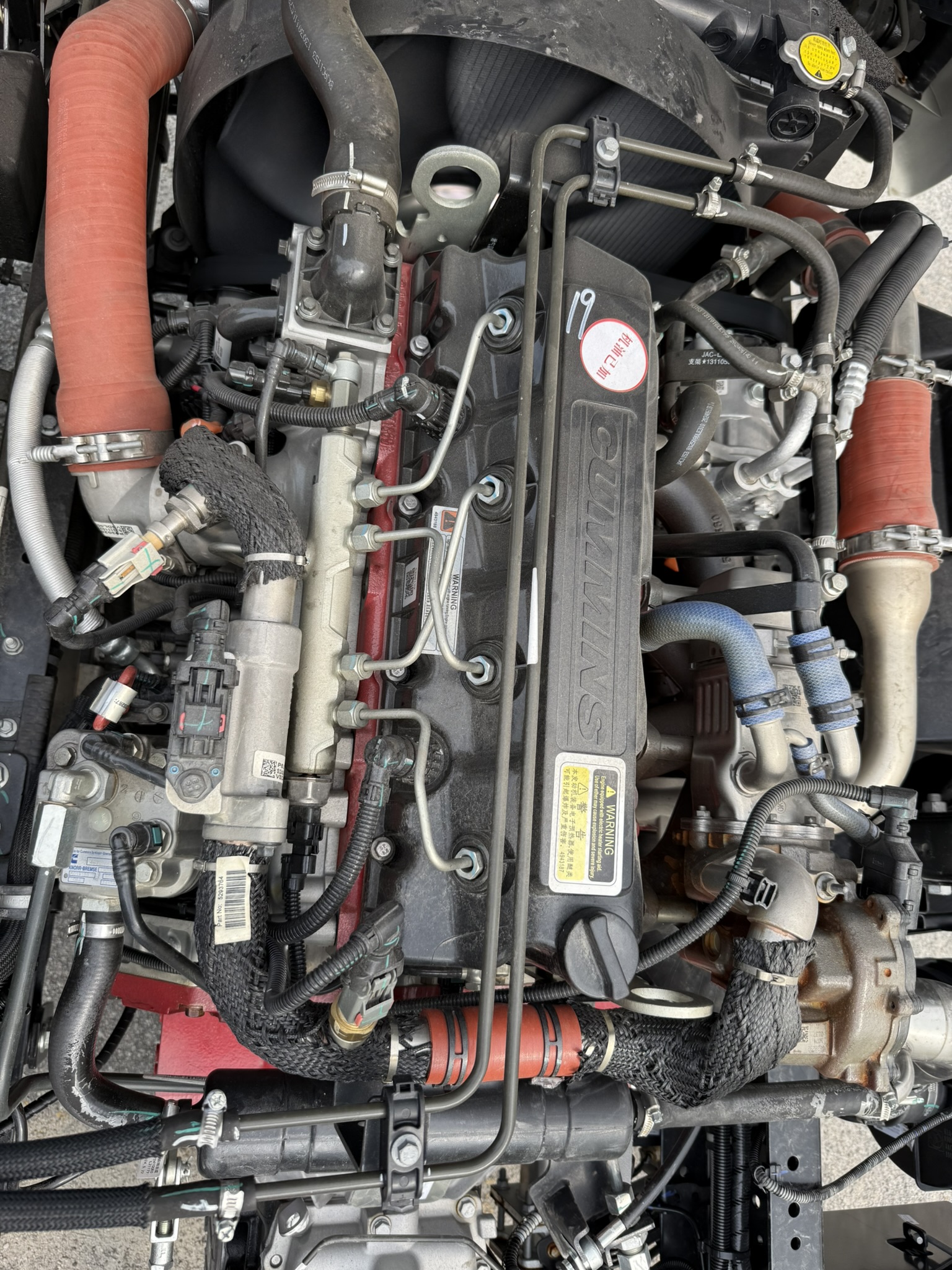

ENGINE
•Model: ISF3.8s4R154
•Emission levels: Euro IV. Common Rail+EGR
•Max rated power (PS@rpm): 154@2600
•Displacement (cc): 3760

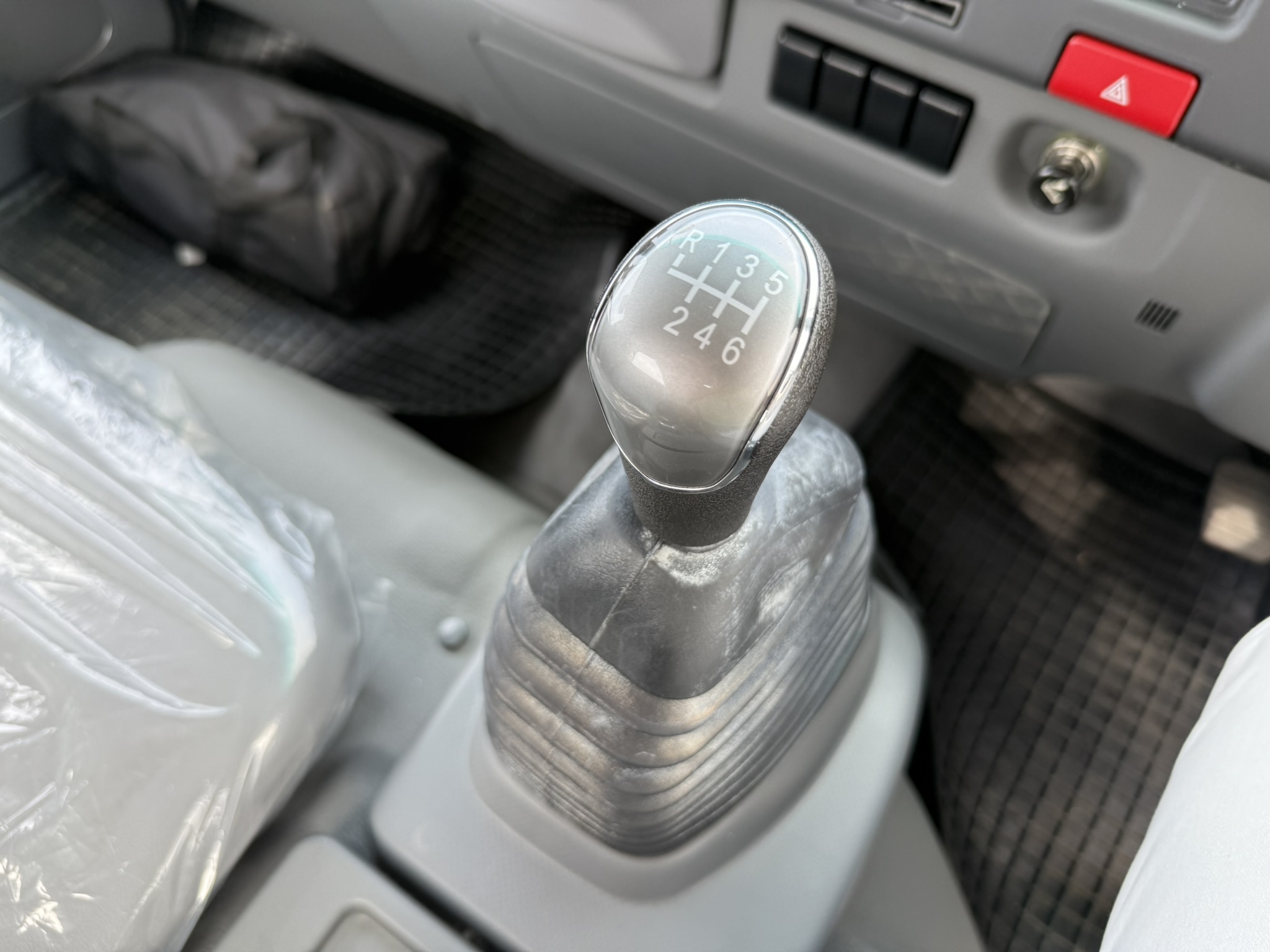

TRANSMISSION
•MT: 6 MT

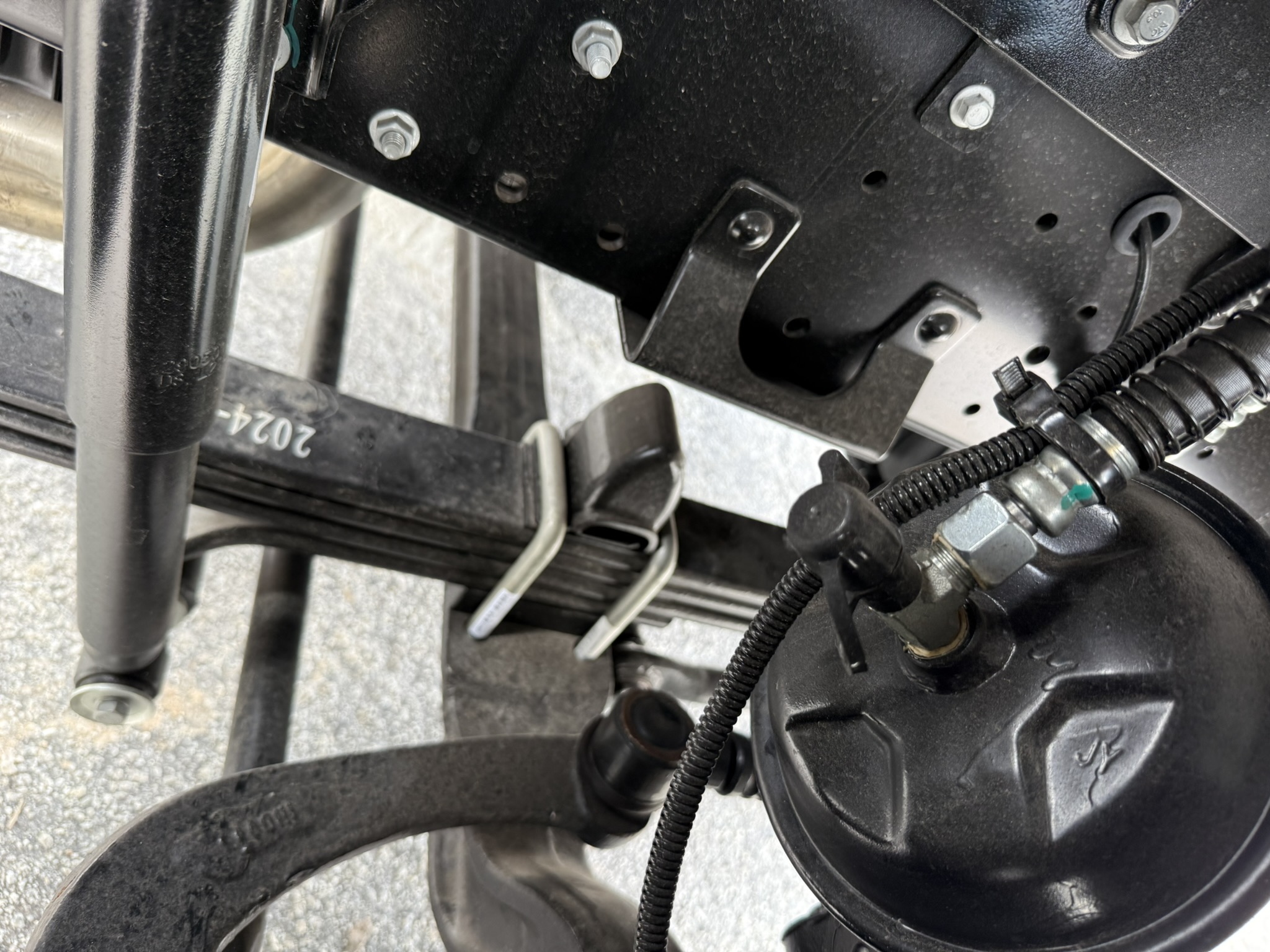

SUSPENSION
•Front: Multi Leaf Spring with Dual Acting Shock Absorber
•Stabilizer bar: ●
•Rear: Multi Leaf Spring with Dual Acting Shock Absorber
•Stabilizer bar: ●

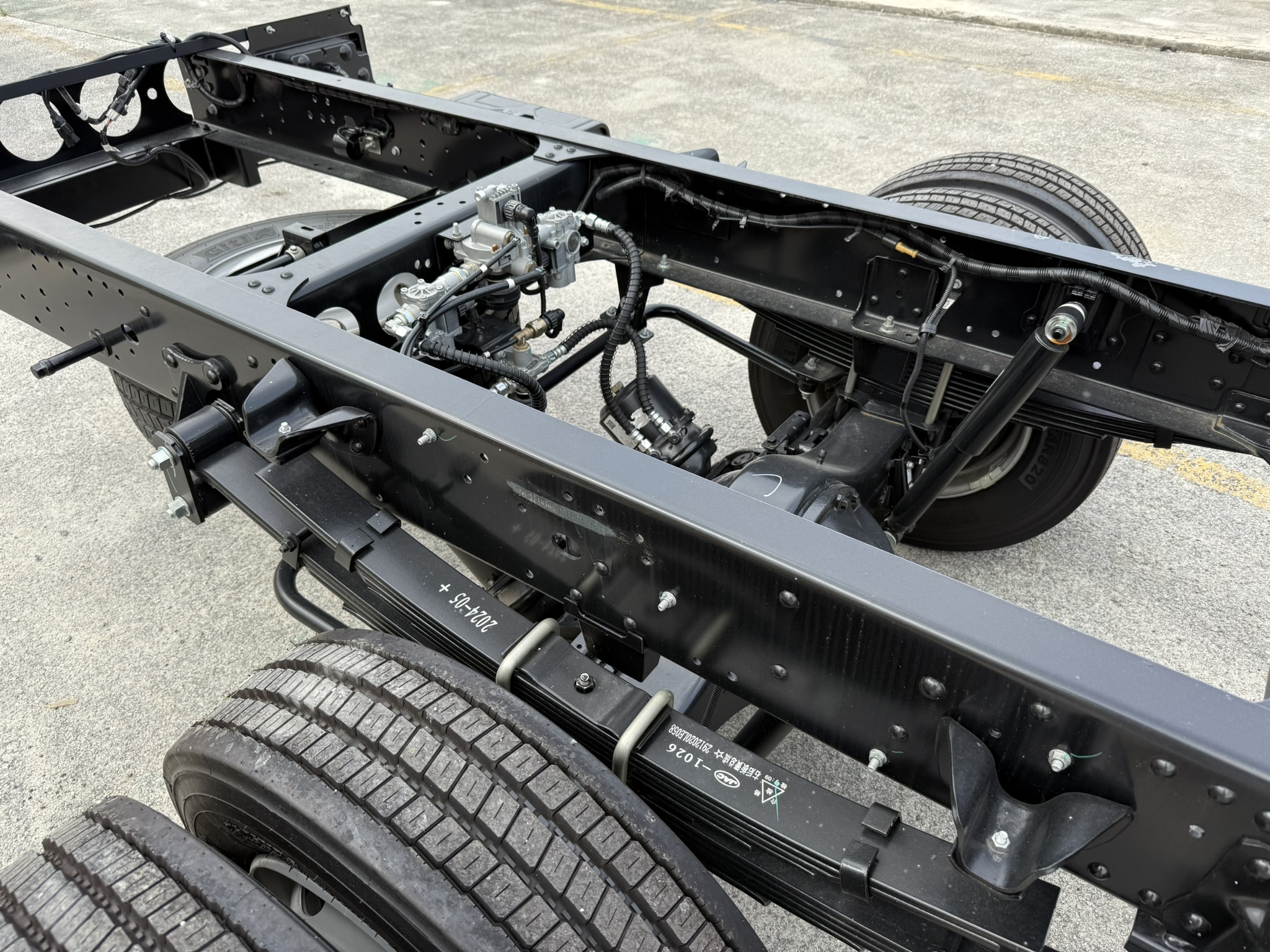

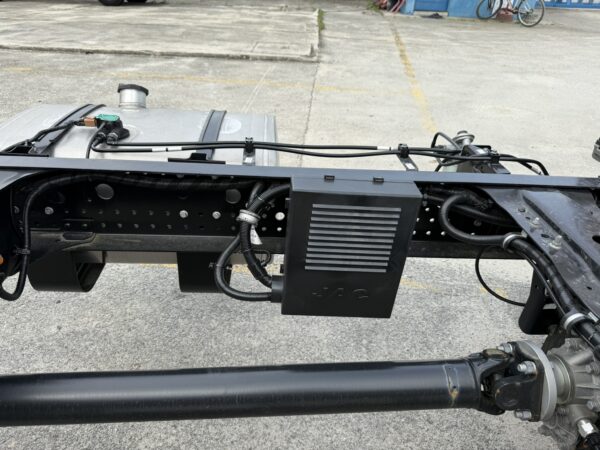

CHASSIS FRAME
•Frame external width Wf (mm): 935/850
•Frame Section Size (mm): 214×70×5

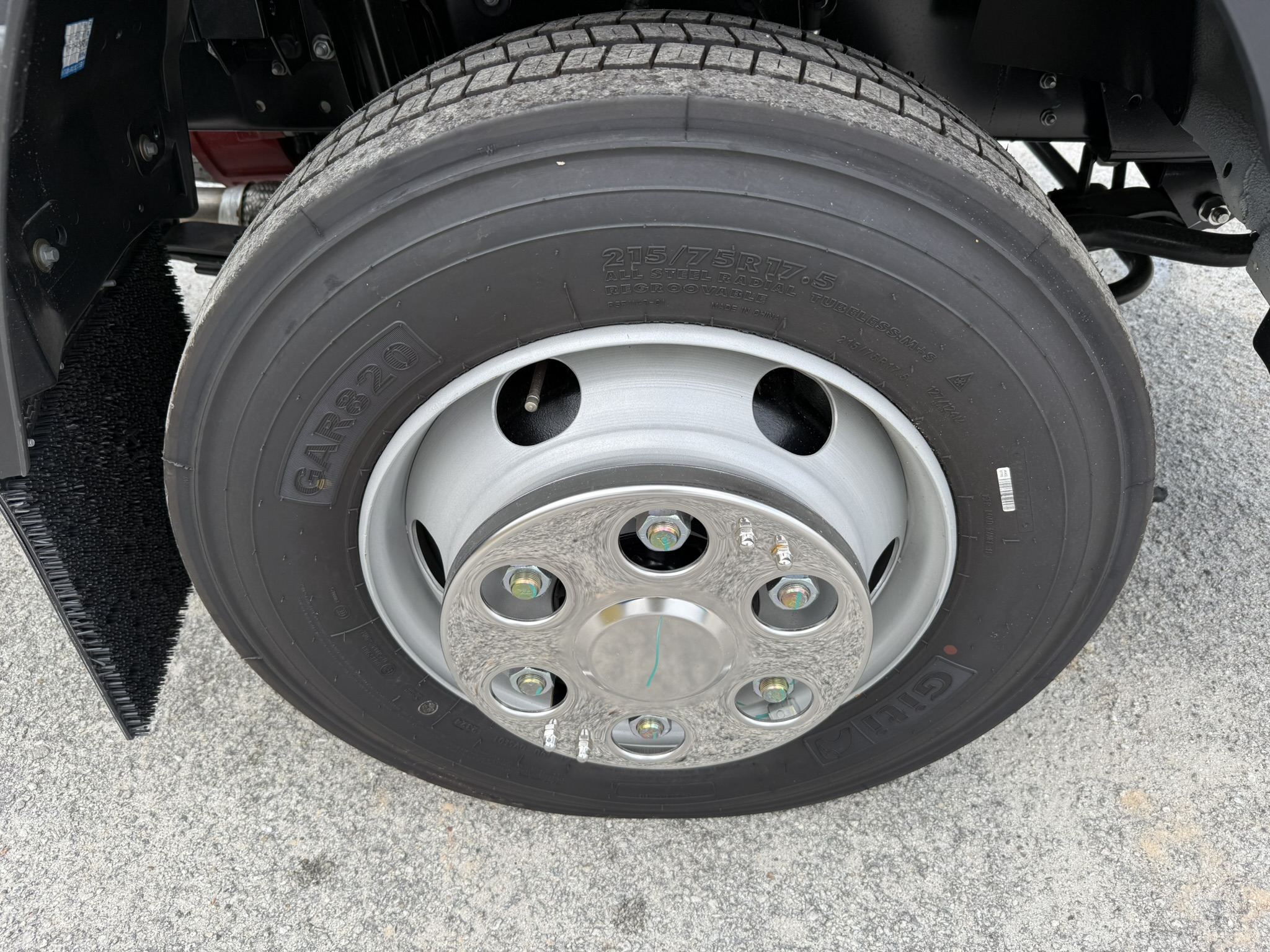

TYRE
•Model: 215/75R17.5 16PR

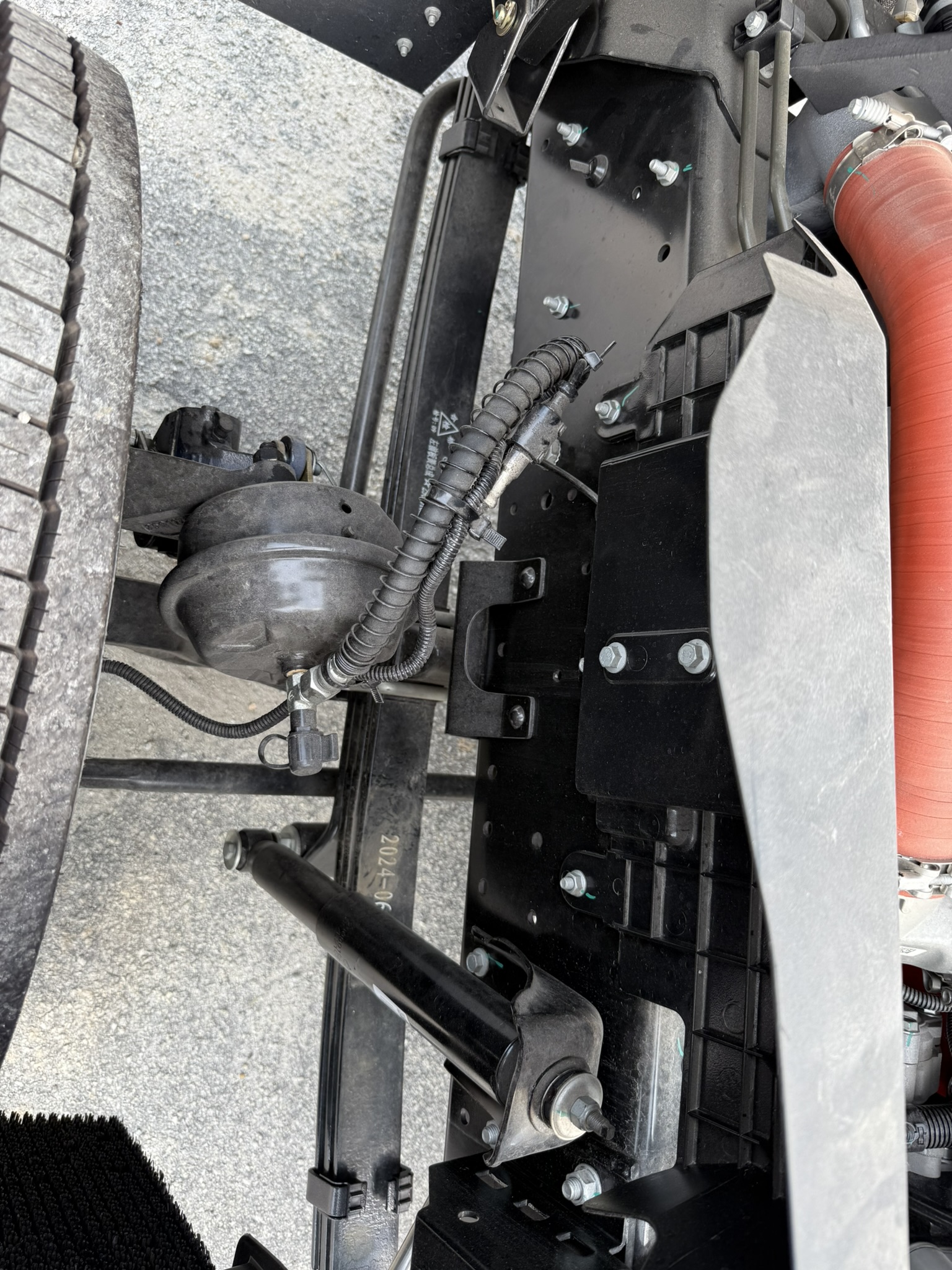

BRAKE
•Brake Type: Air Brake
•Drum Type: Front Drum / Rear Drum
•Exhaust assisted braking: ●
•Reversing alarm: ●
SAFETY DEVICE
•ABS (Anti-lock Braking System): ●
•ASR (Acceleration Slip Regulation): ●
•HSA (Hill-Start Assist): ●
STEERING
•Power Assist, Recirculating Ball Type: ●
DIMENSION
•Overall Length (mm): 7033×2116×2300 / 8005×2116×2300
•Wheelbase (mm): 3845 / 4475

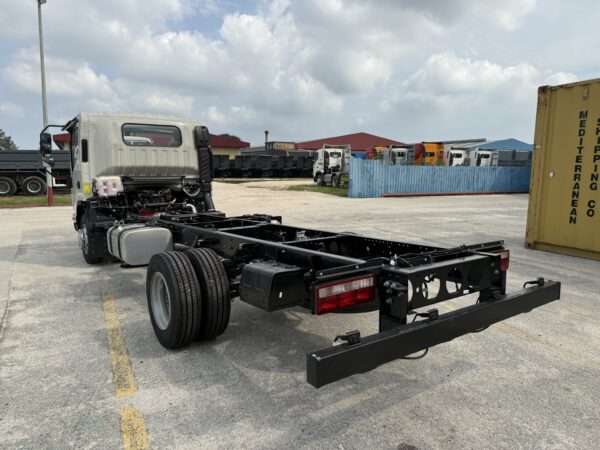

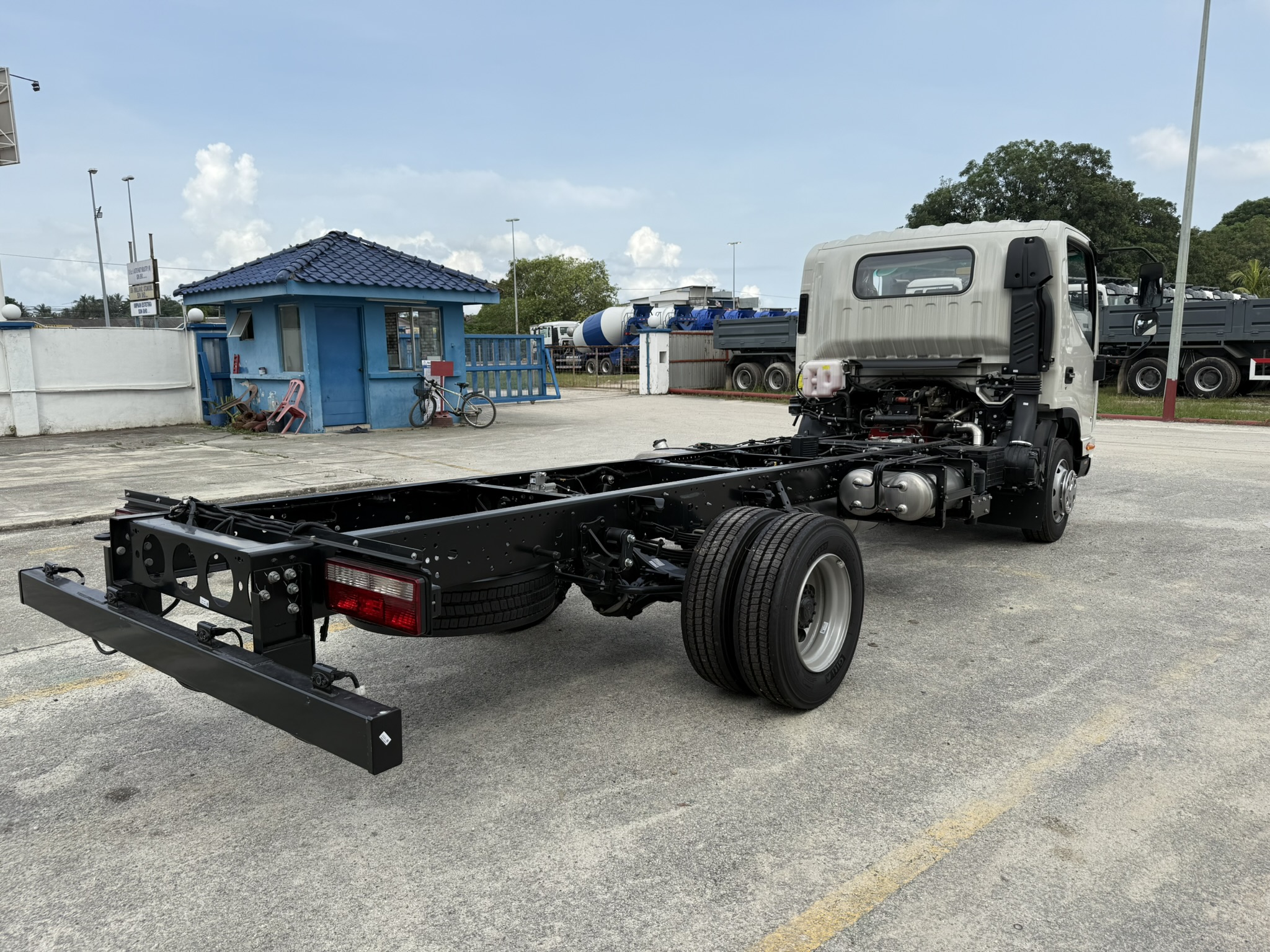

CAB CHASSIS
•Front/Rear Overhang (mm): 1110/2078 / 1110/2260
•Front/Rear Tread (mm): 1710/1650
Others
•Cruise control speed: ●
•Central lock: ●
